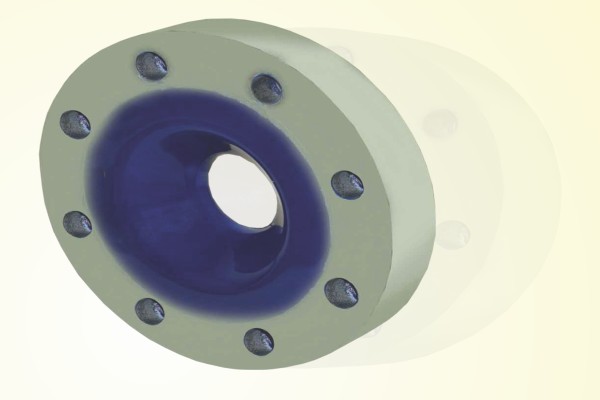

Glasslined Reducing Flanges



Design Specification for Glasslined Reducing Flanges

Design Pressure

Full Vaccum/ 6.0 Kg/cm2

Design Temperature

-100C to 1800C (Standard Cobalt Blue Glass)

-100C to 2400C (High Temperature Ultra Glass)

Tolerances

As per DIN 2873

Flange Dimension

As per ANSI B 16.5 150#, 300# or DIN 2501 part- I PN-10/16/25

Glasslining

As per DIN 28136

External Coating

Epoxy base primer followed by PU finish



Lining Thickness





1.0 to 2.2 mm

For C.S



Spark Test



For Cast Iron

Internal Inspection :  20,000 V (only once)

Final Inspection       :  10,000 V

Internal Inspection :  10,000 V (only once)

Final Inspection       :  5000 V
